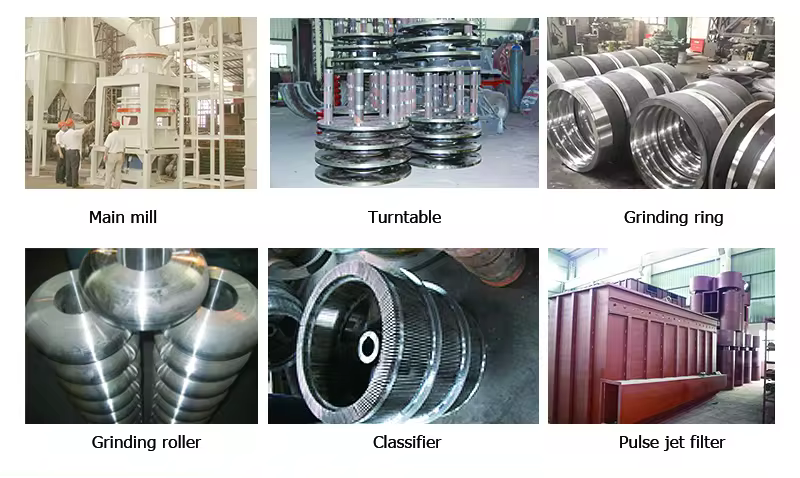

Micro Powder Grinding Mill Parts

Spare parts of HGM micro powder mill/ Three-ring micro powder mill /SCM super-micro mill

Micro Powder Grinding Mill Parts

Hardness: OEM Grinding mill rollers raw material has two kinds, hardness is 37-41HRC for normal kinds; high chrome steel rollers hardness can be 60-63 HRC.
Size: Roller diameters can be 230mm,250mm, or other sizes according to the customer’s requirements.

High Chrome Grinding Rollers for Roller Grinding Mill

Structure of Micro Powder Grinding Mill

1. Upper distributor
2. Turn table
3. Rollers
4. Ring
5. Lower distributor
6. Lower body
7. Pulse controller
8. Current relay
9. Classifier rotor
10. Main unit Base

Scope of Ultra fine Grinding Mill

HGM Ultra fine grinding mill specialized in producing fine and superfine powder of non-inflammable non-explosive and brittle materials with Moh’s hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite, and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice, fly ash, etc., totally more than 100 kinds of materials.

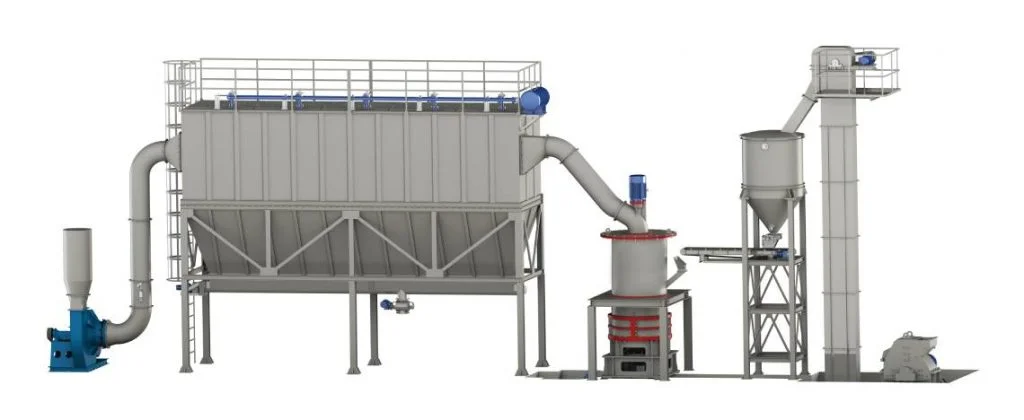

Ultra fine grinding production line composition

HGM series ultra-fine grinding mill production line mainly consists of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

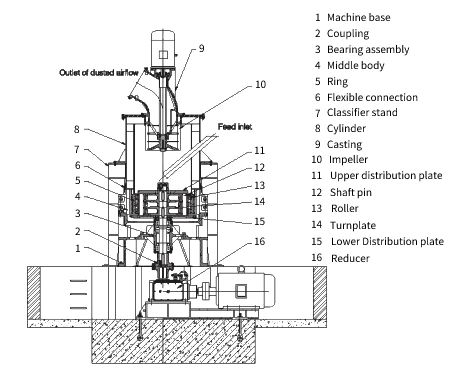

Structure of ultra-fine grinding mill

Vertical Roller Mill Parts
