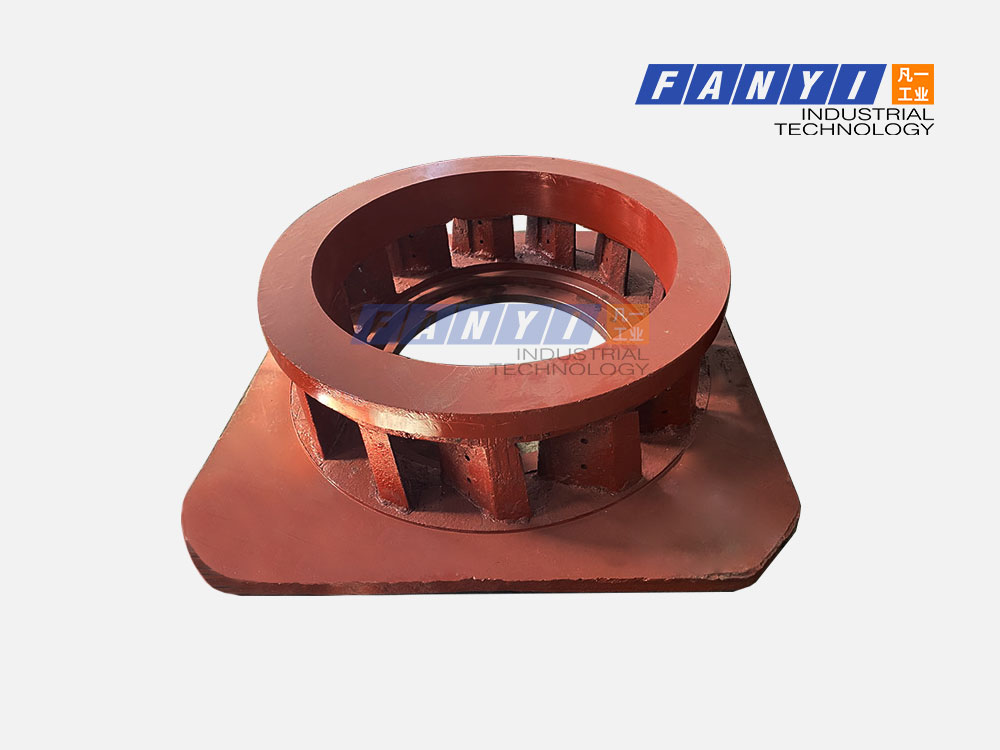

Raymond mill ventilation base
The Ventilation Base(Shunt plate) of the main machine of Raymond mill is located at the bottom of the main machine and is in the shape of a hollow prism. The inner circle is determined according to the specifications of the grinding rings of various Raymond mill models. The Ventilation Base material is made of high-quality, high-strength cast steel, which is not easy to Damage, durable.

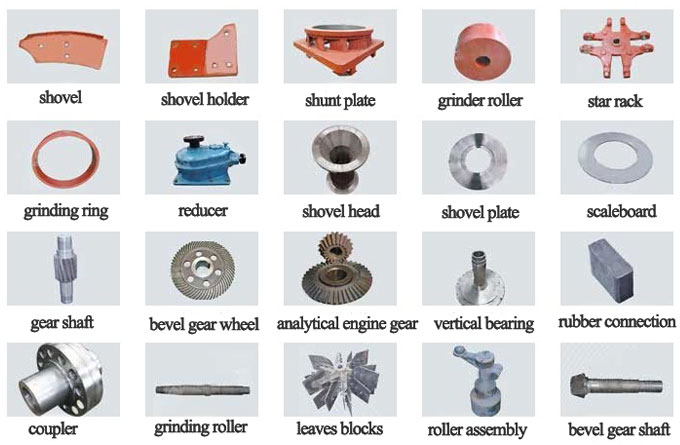

Customized China Raymond roller mill wearing parts, pressure mill spare parts, and ultra-fine powder machine parts.
Raymond mill ventilation base
Raymond mill flow-dividing disc
Raymond, roller mill with double whizzer
Bowl mill, coal pulverizer mill, vertical mill, Raymond mill
grinding mill parts

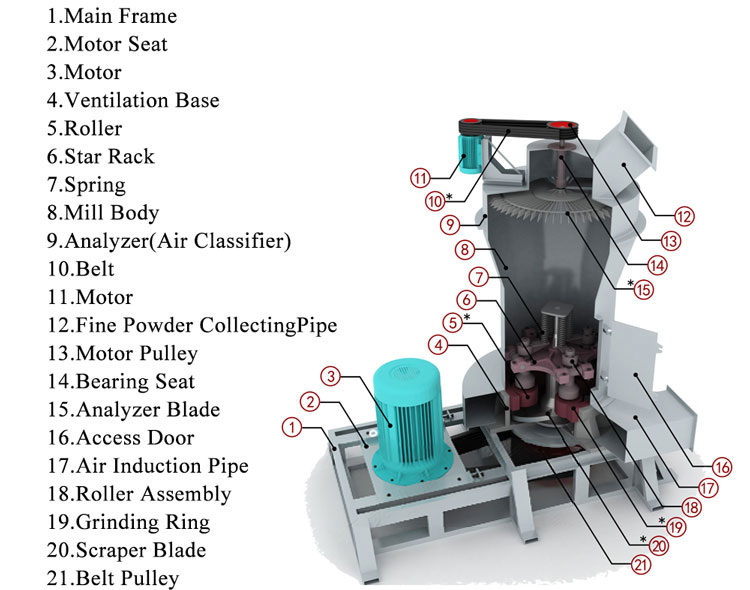

1. Main Frame 2. Motor Seat 3. Motor 4. Ventilation Base 5. Roller

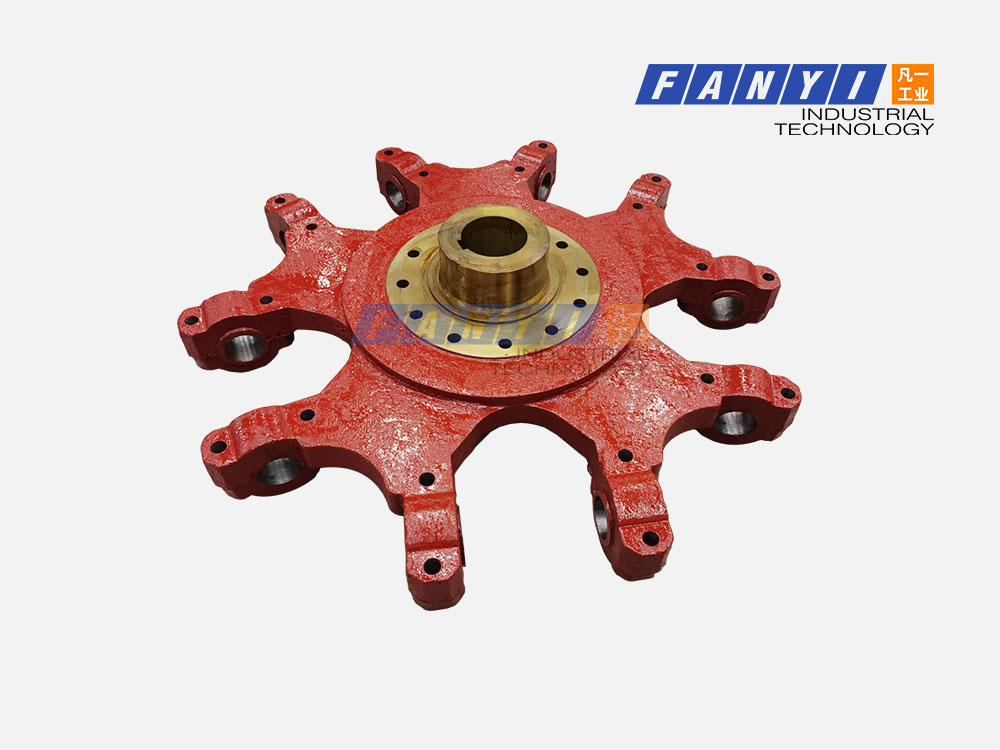

6. Star Rack 7. Spring 8. Mill Body 9. Analyzer(Air Classifier) 10. Belt
11. Motor 12. Fine Powder CollectingPipe 13. Motor Pulley 14. Bearing Seat
15. Analyzer Blade 16. Access Door 17. Air Induction Pipe 18. Roller Assembly

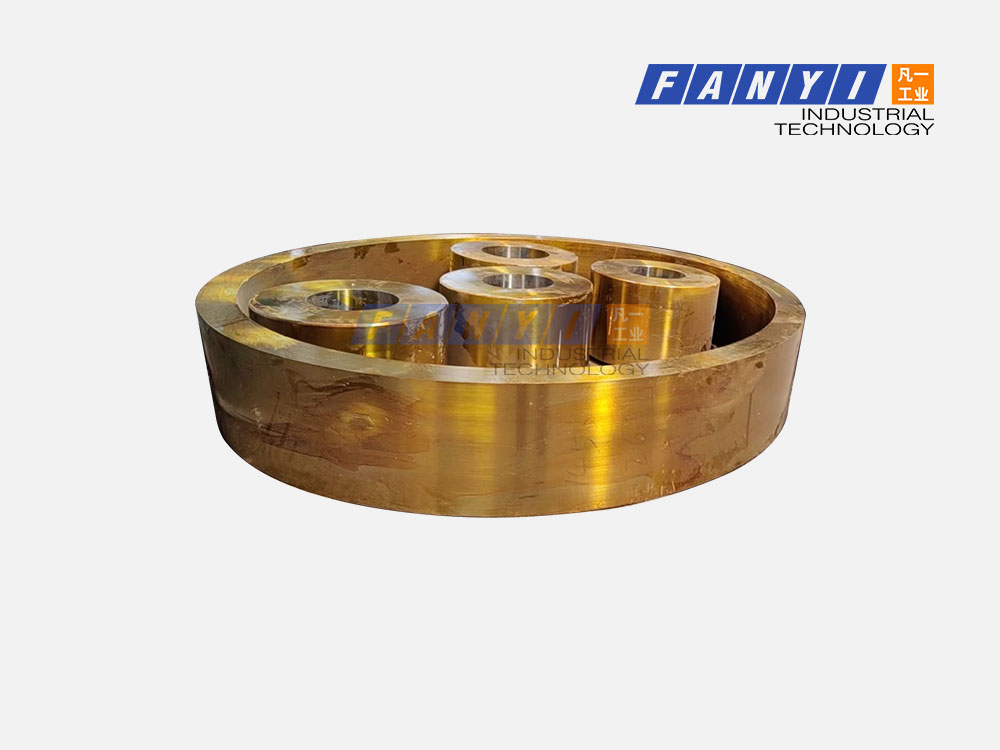

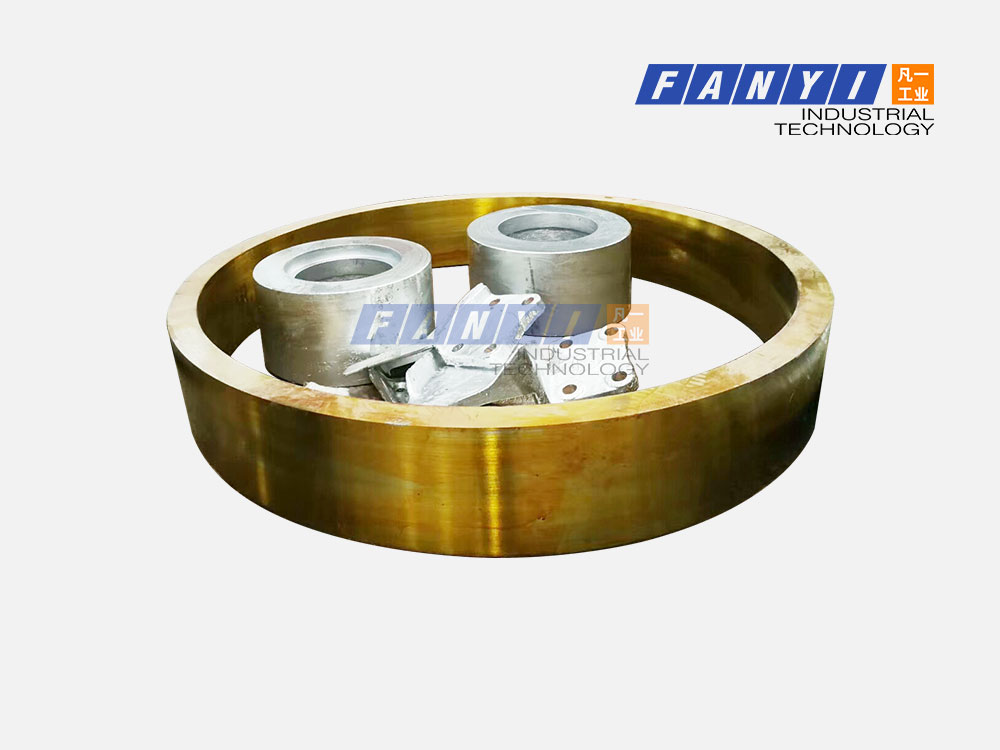

19. Grinding Ring 20. Scraper Blade 21. Belt Pulley

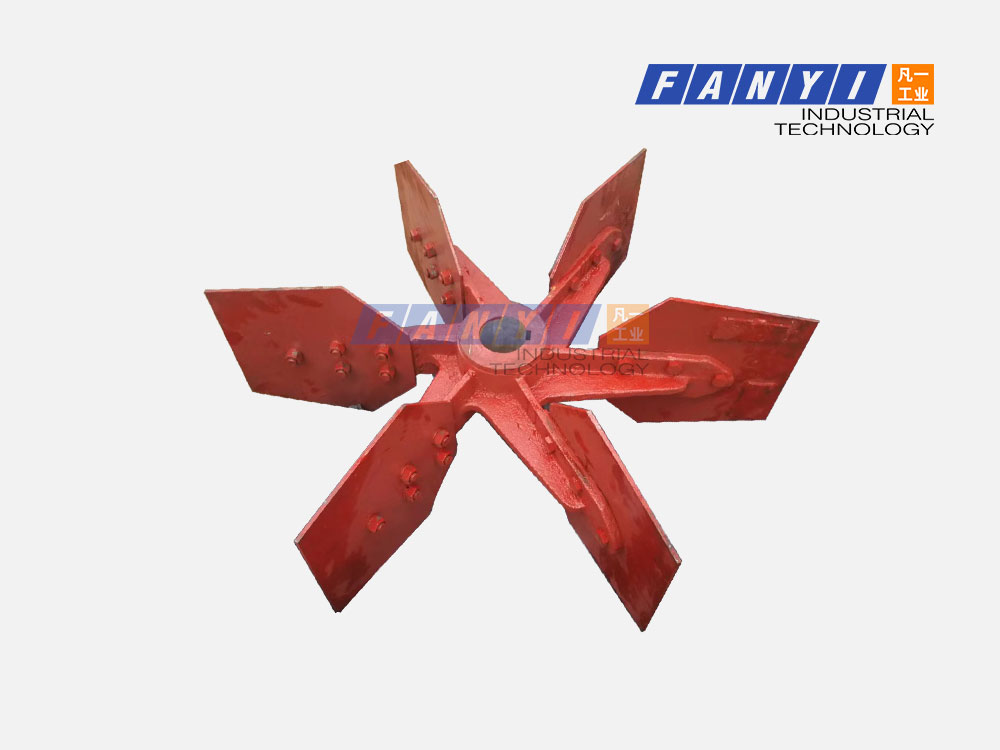

Customized China Raymond roller mill wearing parts
With the experiences we have collected, Capable of supplying the wear parts for following roller mills models:
MTW110 ™ | MTW138™ | MTW175™ | MTW215™|SCM6015™ | SCM8021™ | SCM10027™ |XZM221™ | XZM224™ | XZM236™ | XZM244™ |HGM80™ | HGM90™ | HGM100™ | HGM100A™ | HGM125™ | HGM1680| TGM100 ™ | TGM130™ | TGM160™|MTM100 ™ | MTM130™ | MTM160™ |YGM75™ | YGM85™ | YGM95™ | YGM130™ | YGM160™
3R1510, 3R2115, 3R2615, 3R2715, 3R3015, 3R3016 Raymond mill parts.
4R3216, 4R3117, 4R3220 model Raymond mill parts.
5R4119 and 5R4220 model Raymond mill parts.
65, 75, 85 and 95 model suspended roller pressure mills parts.
7826, 8327 and 9531 model ultra-fine powder mills Spare parts.
