Ball Mill Wear Parts Grinding Media & Rods

Steel Grinding Rods are made of a special steel which breaks up without twisting when final wear occurs. This is extremely important in maintaining full grinding capacity and eliminating the difficulty of removing wire-like, worn rods which twist and bend into an inseparable and space filling mass of interlaced wires if breaking does not occur. Rods are shipped in lengths cut to suit the length of each particular customer’s rod mill.

Grinding Media & Rods Information

Product Name	Grinding Rods
HS Code	72283090
Size Range	Length: 1000-8000mm, Diameter: 30-260mm
Specification	40Cr, 42CrMo, 60Mn, 65Mn, 45#, B2, B3, BU, BL, BG
Surface Hardness	45-60HRC
Impact Value	≥12J/cm2
Dropping Test	10,000-20,000 times

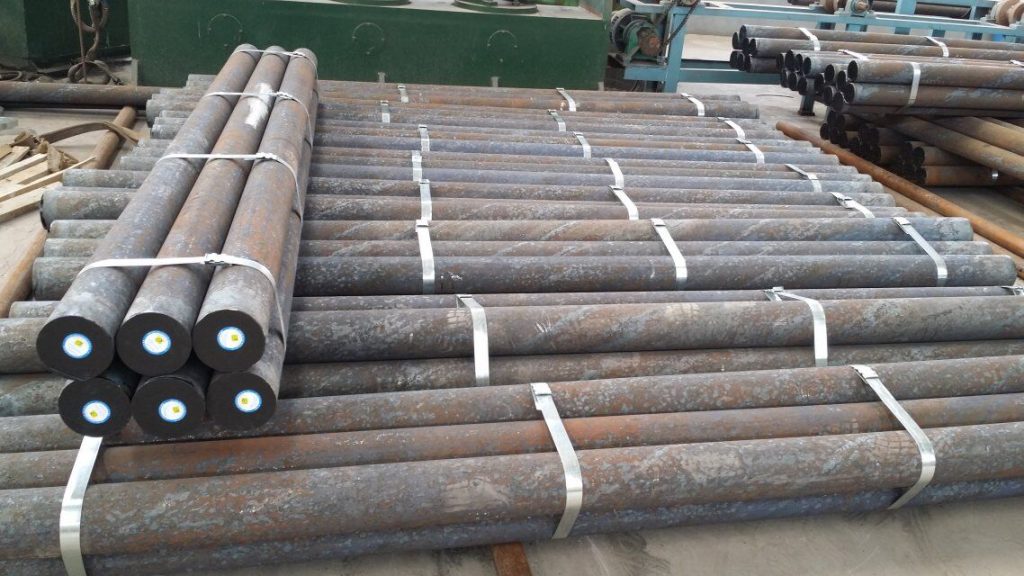

Packaging	Bundles

Grinding Rods Size

Diameter (mm)	Length (mm)
30-260	1000-8000

Chemical Composition (%)

Steel Specification	C	Mn	Si	Cr	S	P
40Cr	0.37-0.44	0.50-0.80	0.17-0.37	0.80-1.15	≤0.035	≤0.035
42CrMo	0.38-0.45	0.50-0.80	0.17-0.37	0.90-1.25	≤0.035	≤0.035
45#/ C45/1045	0.42-0.50	0.50-0.80	0.17-0.37	≤0.15	≤0.035	≤0.035
65Mn	0.62-0.72	0.90-1.20	0.17-0.37	≤0.25	≤0.035	≤0.035
B2	0.72-0.85	0.70-0.90	0.17-0.36	0.40-0.60	≤0.035	≤0.035
B3	0.52-0.65	0.40-1.00	1.33-1.85	0.78-1.20	≤0.030	≤0.030
BU	0.95-1.05	0.95-1.05	0.15-0.35	0.45-0.55	≤0.035	≤0.035
BL	0.55-0.75	0.65-0.85	0.15-0.35	0.70-1.20	≤0.035	≤0.035
60Mn	0.57-0.65	0.70-1.00	0.17-0.37	≤0.25	≤0.035	≤0.035

Physical Features

Steel Specification	Impact Value (J/cm2)	Surface Hardness (HRC)	Diameter (mm)	Length (mm)
40Cr	≥12	45-60	30-260	1000-8000
42CrMo
45#/ C45/1045
65Mn
B2
B3
BU
BL
60Mn

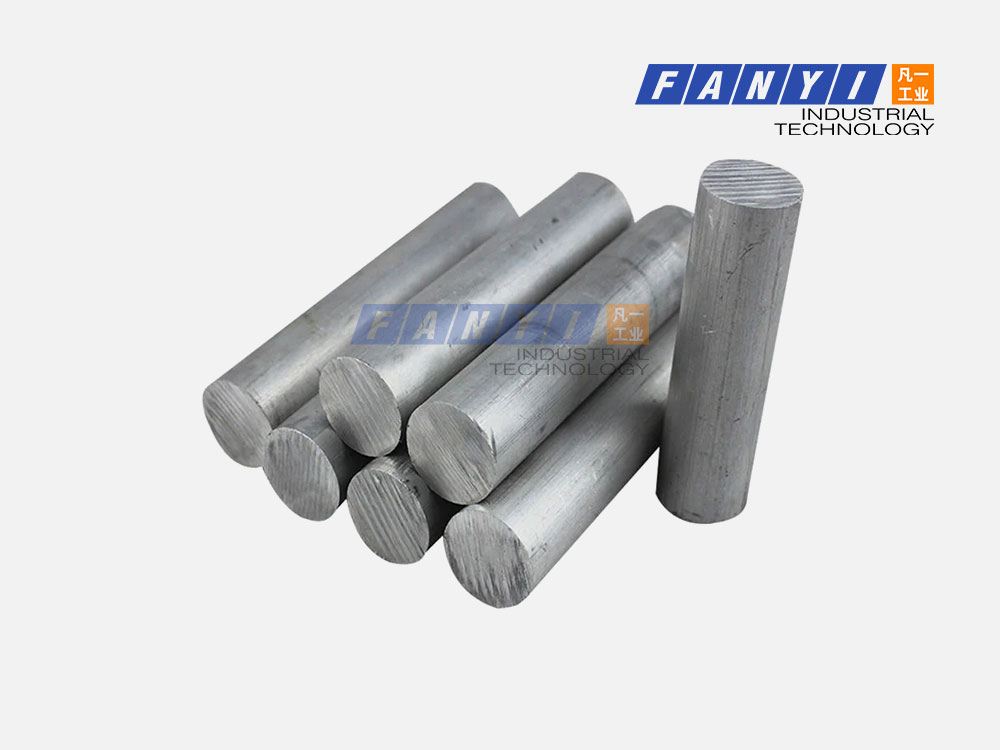

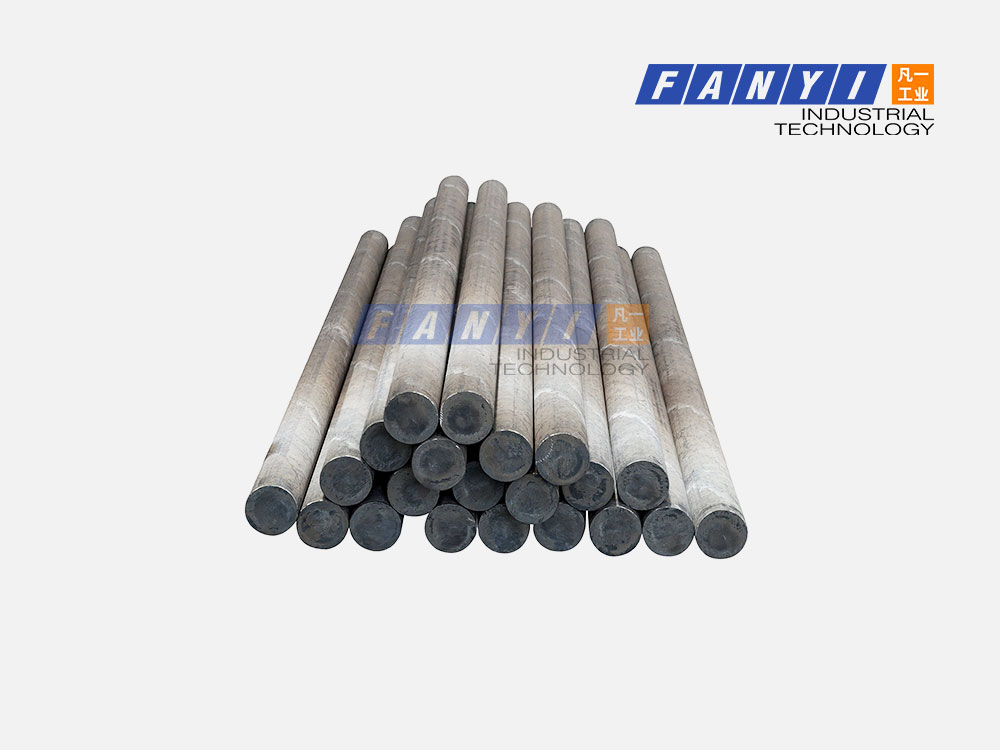

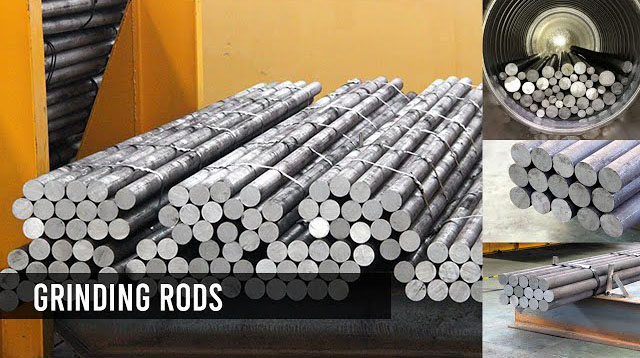

Steel Grinding Rods

Steel grinding rods are high-quality steel rods that have undergone various heat treatments to maximize wear and impact resistance.

Characteristics of Steel rods in grinding media :

• Steel Grinding Rods are used in metallurgy and mining for grinding ores such as iron, copper, and gold.
• It is used for the processing of extracted minerals.
• It can be used for grinding coke and friable non-metals.
• It is used to grind material for glass.
• It is also used to grind gravel to produce sand.
• Steel mills are cheaper as they use less energy.

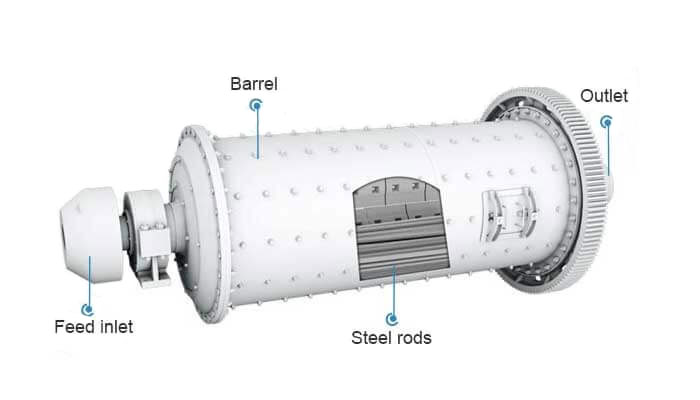

What is a grinding rod used for?

Steel rods commercially are used to construct structures like buildings, bridges, RCC roads, towers, etc. They are known to be a very strong material, Structural steel outmatches most other materials with a stress yield of 50,000 pounds per square inch. in grinding media, they are used in rod mills for three main purposes:

• Fine Crushing

Rod mill can be used as fine crushing equipment to replace short-type cone crushers when crushing soft ores. It has a simple configuration, fewer costs, and low dust pollution, which can save a lot of investment in dust removal machines.

• Prevention of Over-Crushing

When the tungsten ore, tin ore, or other rare metal ores are selected by gravity separation or magnetic separation, a rod mill is often used to prevent over-crushing.

• Preliminary Grinding for Larger Capacity

In the two-stage grinding process, a rod grinding machine is generally used as the first grinding equipment, which has the advantages of larger production capacity and higher efficiency

the most familiar applications of steel grinding rods are:

• Steel rods are used in metallurgy and mining for grinding ores such as iron, copper, and gold.
• It is used for the processing of extracted minerals.
• It can be used for grinding coke and friable non-metals.
• It is used to grind material for glass.
• It is also used to grind gravel to produce sand.
